AGV TECNA CM700/3000

  • AGV TECNA CM700/3000
  • AGV TECNA CM700/3000
  • AGV TECNA CM700/3000
  • AGV TECNA CM700/3000

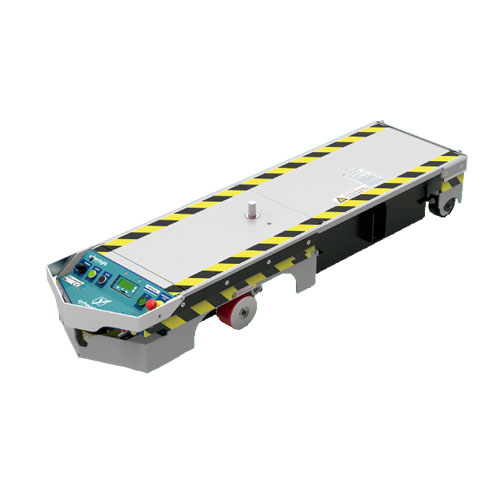

Product Item: AGV TECNA CM700/3000
Category: AGV CM700/3000

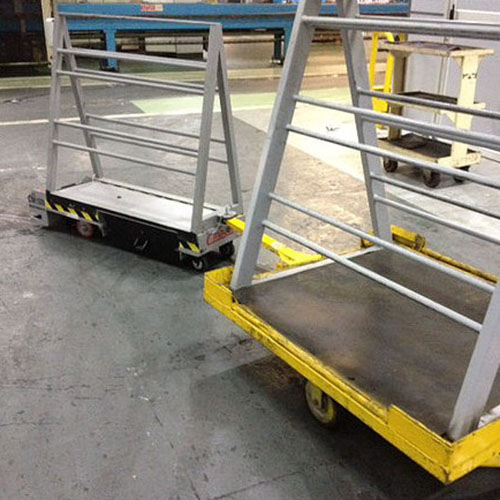

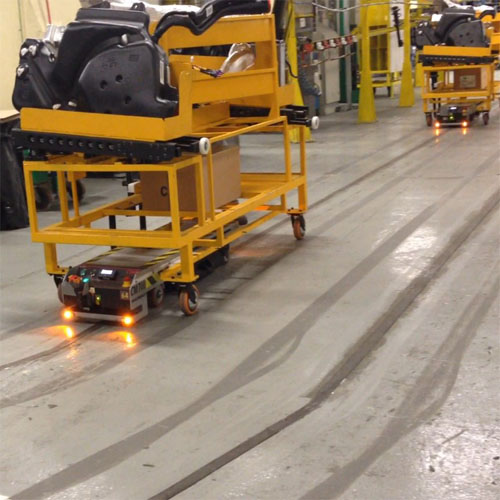

- The one-way tunnel AGV is worked under the trolley and uses the tow bar to automatically lift, hook or drop the trolley.
- Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.
Product Manual:Please download brochure under attachment.

Attachment Inquiry

You can make an inquiry about this product.
Your e-mail will not be leaked.


Model: CM-700

Maximum load: 700 Kg.

Approximate weight: 100 Kg (battery excluded)

Chassis: Monocoque steel / Tubular (optional)

Tension: DC24V

Guiding system: Magnetic / Optical (Optional)

Traction: Differential

Electric steering: 355º

Direction: 2WD

Maximum speed: Configurable from 1.7 to 50 m/min

Minimum turning radius: 600 mm.

Battery: 24V options for autonomy of 20 to 30 hours

Charger: Automatic

Length: 1355 mm.

Width: 420 mm.

Height: 250 mm.
